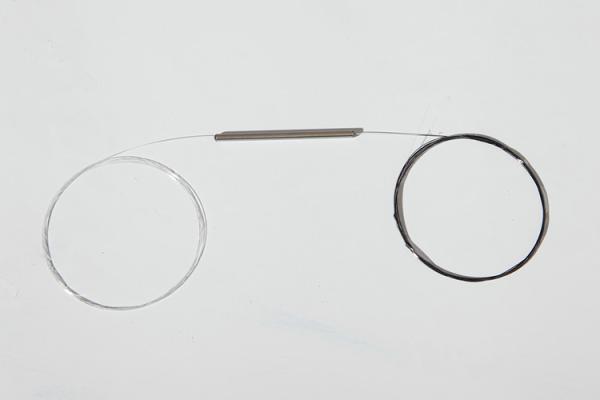

1550nm 0.9mm Fiber Optic Cable Coupler

Brand Name : GEEHE

Model Number : GH-FO-016

Certification : CE,ISO9001:2015

Place of Origin : Wuhan

MOQ : 100 pcs

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T,Ali Pay,, Western Union

Supply Ability : 3,000 Pcs Per Day

Delivery Time : Within 3-5 working days

Packaging Details : Plastic box per pc with pressure defense sponge, outer carton

Model Name : Fiber Optic Coupler

Configuration Type : 1×2

Fiber Type : 250um Bare Fiber

Optical Coupler Configuration Type: 1x2 Operating Wavelength : 1310nm,1490nm,1550 nm

Package Type : Steel Tube

Split ratio : 50:50

Other Types : Singlewindow, Dualwindow,Triplewindow

Function : Fiber distribution

Available pre-terminated : LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC

Compliance : Telcordia GR1209,Telcordia GR1221

Contact Now

1x2 Single Mode 1310/1550nm 0.9mm Loose Tube Dual Window Coupler





Optic coupler introduces:



1X2 FBT Splitter, Singlemode Dual Window, 0.9mm Loose Tube



Fiber Couplers are designed for splitting light with minimal loss from one into two fibers or to combine light from two fibers into one fiber. They are designed for power splitting and tapping in telecommunication equipment, CATV networks, and test equipment.



Geehe can provide customized FBT splitters in a variety of styles: single-window,dual-window, three window broadband couplers.



1×2 Bare Fiber Coupler Features:

  • The small protective metal sleeve around the split fibers
  • 2x2 50:50 Split ratio at 850nm for 50/125µm fiber
  • 900µm loose tube fiber for easy stripping, splicing or terminating
  • Also available pre-terminated with LC/UPC, LC/APC, SC/UPC, SC/APC, FC/UPC, FC/APC, and ST/UPC.
  • Available split ratios: 50/50, 90/10, and others in 1x2 or 2x2 splits
  • Various coupling ratio
  • Low polarization-dependent loss (PDL)
  • Operating temperature -40℃ to 85℃
  • Built with Corning G.657A or G.652D optical
  • Dual operating window
  • Mini sizes



Specification and parameter:



Parameter P A
Operating Wavelength(nm) 1310&1550
Operating Bandwidth(nm) 1310 ± 40nm,1550 ± 40nm
Fiber Type(dB) Corning G652D OR Corning G657 A1
Insertion Loss
(dB)		 50/50 ≤3.3 ≤3.5
40/60 3.70~4.40≤2.5 3.50~4.60/≤2.8
30/70 5.00~5.60/≤1.8 4.90~6.10/≤2.1
20/80 6.80~7.40/≤1.2 6.50~7.70/≤1.2
10/90 9.60~10.50/≤0.6 8.80~11.40/≤0.8
5/95 12.70~13.50 /≤0.4 12.05~14.05/≤0.5
3/97 14.60~15.50/≤0.3 13.60~16.05/≤0.4
2/98 16.60~17.90/≤0.25 15.60~18.20/≤0.3
1/99 19.20~20.80/≤0.2 18.80~21.40/≤0.25
PDL(dB) ≤0.1 ≤0.15
Return Loss(dB) ≥50 ≥45
Directivity(dB) ≥55
Operating Temperature(℃) -40 ~ +85



* The above specification is without connector



* Other specifications can be made on customer request



Ordering Information:



WBC- X- X2- 35- XX- X- XX- XX- X
  P: Premium
A: Grade A
X: Customization		 12:1x2
22:2x2		 35:1310/1550nm 01: 01:99
02: 02:98
……
50: 50:50		 1:1 m
x: Customization		 25:250μM Fiber 09:900μM loose fiber SC: SC/UPC SA: SC/APC
00: no connector		 A: A
B: B
C:C
Grade Port number Operating wavelength Coupling ratio Fiber length Fiber type Connect type Dimension



EX:WBC-P-12-35-50-1-09-0-B





Application:



Long-haul Telecommunications



Mini sizes transmitter/ receiver module



Optical communication systems



Testing instruments



Other applications in fiberoptic systems

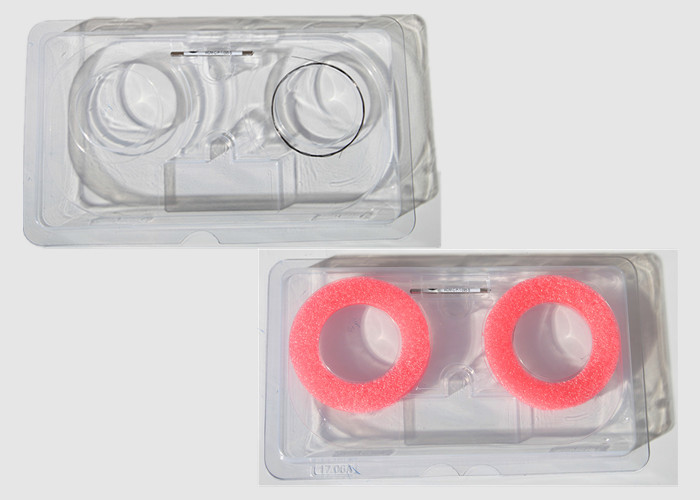

Package picture:



1550nm 0.9mm Fiber Optic Cable Coupler
