Outdoor 16F MPO-LC Module Multimode 6 Port HD Patch Panel

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

Outdoor 16F MPO-LC Module Multimode 6 Port HD Patch Panel

  • 1
  • 2
  • 3

Brand Name : Wuhan Geehe (High Level OEM)

Model Number : GH-HD-Cassette-0012

Certification : ISO9001:2015,ISO14001,RoHS

Place of Origin : Wuhan China

MOQ : 500 pcs

Price : Negotiation

Payment Terms : L/C, T/T, D/A, D/P, Western Union,Ali Pay

Supply Ability : 500 Pcs/ Day

Delivery Time : Within 5-7 working days after confirm order

Packaging Details : Inside box for each Cassette with Pressure defense packaging,thicker outer carton

Model Name : HD 16F MPO-LC Module

Material : Cold-rolled steel sheet

Cassettes : MPO Cassettes

Max Capacity : 144 Cores

Adapter : LC adapter, MPO adapters

Colors : Black

Patch Cord Quantity : 1x24fo, 2x12Fo ,1x12 Fo

Panal Height : 1U

Front Connector : 12 LC UPC Duplex (Aqua)

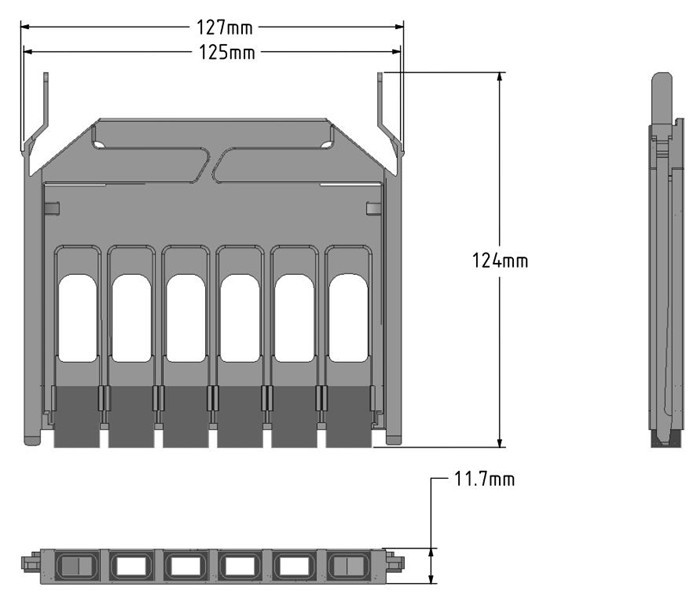

Dimensions : 127 x 124 x 11.7 (mm)

Contact Now

Outdoor HD 16F MPO-LC Module Multimode 6 Port Fiber Optic Patch Panel



1. Product Description:



The 6 port MPO connector panel is mainly used for jumping the pre-terminal main cable and the fanout cable of the data center.


The adapter panel is used with modules together with 1HU, 2HU, and 4HU HD-Fiber Distribution Frame.



High-Density Series is a versatile solution in multiple sizes (1U/2U/4U) and styles for building backbones, data centers, and enterprise applications, 1U up to 96 LC fibers.



Outdoor 16F MPO-LC Module Multimode 6 Port HD Patch Panel



2. Features & Benefits:



  • The MPO panel can be installed or removed from the front or rear of the HD-Fiber Patch Panels
  • Density with MPO:9 pcs adaptor for 1HU; 18pcs adaptor for 2HU; 36pcs adaptor for 4HU

  • Connect together with high-density female MTP* cable assemblies as an interconnection network

  • Significantly reduce installation time and labor by eliminating field connector terminations

  • Easy Access to Rear of Cassettes or Splice Trays

  • Scalable as Density Needs Change

  • Stacked Panels Can Be Accessed Due To New Removable Door Designs

  • Customizable color and LOGO







3. HD 16F MPO-LC Module Application:



  • Data communication applications
  • Data Centre infrastructure
  • Storage Area Network - Fibre Channel
  • Emerging 40 and 100Gbps Protocols compatible
  • Optic communication systems

Outdoor 16F MPO-LC Module Multimode 6 Port HD Patch Panel







4. Specification and Technology Parameter



Product HD 1U Fiber patch panel
Material Cold-rolled steel sheet
Cassettes 4 pcs MPO Cassettes
Max Capacity 144 Cores
Adapter LC adapter, MPO adapters
Colors Black
patch cord Qty 1x24fo, 2x12Fo ,1x12 Fo
Fiber Mode G657A1, OM1,Om2,Om3,Om4
Panel Height 1U





5. More HD Fiber Optic Panels Can be chosen:



Outdoor 16F MPO-LC Module Multimode 6 Port HD Patch Panel





6. Wuhan Geehe Comm Service:



  • Optical performance 100% factory tested
  • Low Insertion Loss, Back Reflection and PDL
  • High-level OEM Service
  • Payment Support
  • Free Samples for testing
  • Factory Audit by the third party or SGS

Outdoor 16F MPO-LC Module Multimode 6 Port HD Patch Panel
