Male - Female 0db 1db 2db LC UPC Fiber Optic Attenuator Single Mode

Product Categories
Wuhan Geehe Optical Communication Co.,ltd
Contact Now

Male - Female 0db 1db 2db LC UPC Fiber Optic Attenuator Single Mode

  • 1
  • 2
  • 3

Brand Name : Geehe Comm

Model Number : GH-AT-SM-LU009

Certification : ISO9001:2015,RoHS, CE

Place of Origin : Wuhan

MOQ : 100 pcs

Price : Negotiation

Payment Terms : T/T, D/A, D/P, Western Union, L/C

Supply Ability : 60,000 pcs/ month

Delivery Time : 7-9 Working days for confirm order

Packaging Details : Plastic box with Pressure defense sponge, outer carton

Model Name : fiber optic attenuator multimode

Connector Gender : Fiber Optic Attenuator Single Mode

Coupling Face : APC or UPC

Attenuation Value : 2db,3db,5db,6db,7db,10db,15db,30db etc

Operating Wavelength : 1260nm~1620nm

Color : Blue,Green, beige

Housing : Metal, Plastic

Ferrule : Zirconia/Ceramic, Metal

Quality Standard : IEC 61754-13

Mating Durability : <0.2dB

Contact Now

Male - Female 0db 1db 2db LC UPC Fiber Optic Attenuator Single Mode



Product Description:

An optic attenuator is a fiber optic device used to reduce the power level of an optical signal in an optical fiber. Geehe’ offers both variable and inline fixed single-mode (SM) and Polarization Maintaining (PM) fiber-based attenuators.
The fixed fiber optic attenuator consists of an LC simplex male on one end and an LC simplex female on the other end. It is typically used to either test power levels or reduce the power levels of an optical signal.



The LC UPC fiber attenuator contains doped fiber and suitable for both 1310nm and 1550nm operation. Fixed attenuation values are available in 1dB increments from 1 to 25dB. We have a mature attenuator production process, and can fully meet customer needs.


Attenuators enable the installer to adjust the optical power level without changing the other components, or cutting and splicing the fiber.

Male - Female 0db 1db 2db LC UPC Fiber Optic Attenuator Single Mode


LC /UPC Attenuator Features And Benefits:

  • Low Back Reflection
  • Accurate Attenuation
  • Compatible with current conventional single-mode fiber

  • Suitable for panel installation.

  • Removable structure

  • 100% factory tested
  • Withstands high optical power up to 1W
  • Telcordia (GR-910-CORE) Compliant
  • Attenuation range from 1 to 30dB
  • RoHS Compliant


Specification& Parameters:


Parameter Value
Physical Characteristics Plastic Material UL 94V-0ABS high-impact thermoplastic
Fiber Material Metal-ion doped optical fiber
Mechanical Characteristics Operating Temperature(℃) -40 ~ +85
Storage Temperature(℃) -40 ~ +85
Optical Performance Operating Bandwidth 1250nm~1625nm
Center Wavelength 1310nm and 1550nm
Attenuation Tolerance 1 to 10 dB:±0.5dB
11 to 30 dB:±0.5%dB
Return Loss UPC (dB) ≥45
Return Loss APC(dB) ≥55
PDL ≤0.1
Packaging Clear Ziploc Bag,1 Unit Per Bag



Ordering Information:


OTA- HF- XX- X- A- XX-
  HF: Hight return loss type LC: LC
SC: SC
FC: FC		 1: APC
2:UPC		   03: 03DB
04: 04DB
Attenuator Type Connector Interface Polish   Attenuation Value




LC UPC Attenuator Application:

  • Communication Workshop
  • FTTH
  • Telecommunication Networks
  • Data Networks
  • Video & CATV
  • Fiber Optical Communication System

Male - Female 0db 1db 2db LC UPC Fiber Optic Attenuator Single Mode

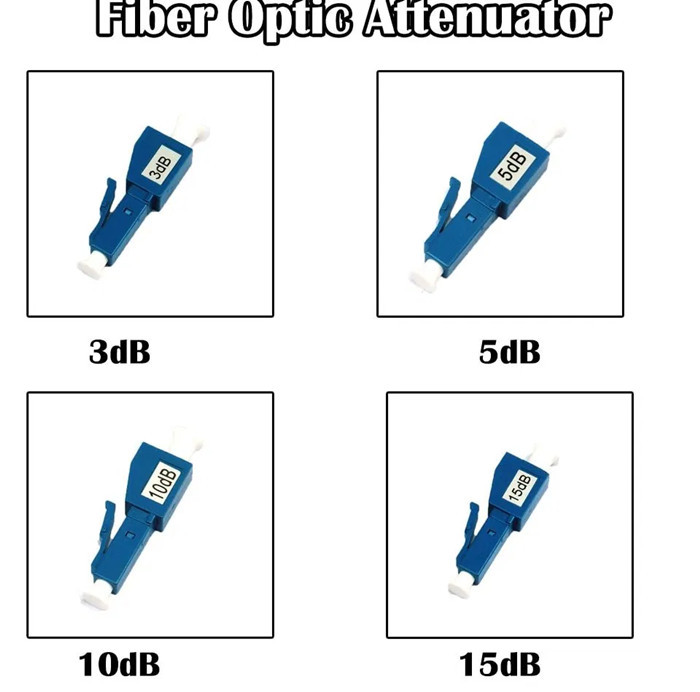

More Choices of Optic Attenuator:

Male - Female 0db 1db 2db LC UPC Fiber Optic Attenuator Single Mode


Wuhan Geehe Comm Serivce to You:


  1. Continuous improvement; accepting new challenges
  2. Innovating new processes, and creating new products for the benefit of our customers
  3. Consultative service and strive to ensure a positive and productive experience
  4. Efficient use of all transportation modes and transit times
  5. Greater visibility and real-time information
